Motion Express Mounts
Provide a Variety of Integration Options
Motion Express provides mounts for various valves and actuator options. See below for some of the specific mount features. If you are in need of mounts for actuators or valves that are not listed here, please feel free to contact us. We are always open to creating a new custom mount solution.
Exlar to Kimray Valve Mounts
Key Features
- Options for 1", 2", 3", 4", 6", 8" and 10" valve bodies
- Custom configured for TDX/M075, GSX/M30 and EL30 Actuators
- Short overall height of only 8"
- Reuses existing Kimray coupling
- All components are corrosion resistant
- Built-in anti-rotate assembly
- Mount and bearing rated for -100°F to 200°F
- Optimized lubrication of linear actuator in vertical installs
- Self-aligning assembly

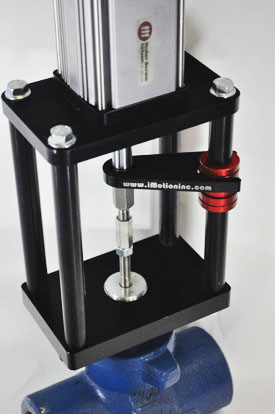

Exlar to Norriseal Valve Mounts
Key Features
- Options for multiple valve bodies, including Norriseal 2200 and 2700 series
- Custom configured for TDX/M075, GSX/M30 and EL30 Actuators
- Short overall height of only 8"
- All components are corrosion resistant
- Built-in anti-rotate assembly
- Mount and bearing rated for -100°F to 200°F
- Optimized lubrication of linear actuator in vertical installs
- Self-aligning assembly
Exlar to Fisher Valve Mounts
Key Features
- Options for 2 1/8", 2 13/16", 3 9/16" and 5" Yoke Boss
- Custom configured for TDX/M075, T2X/M090 and T2X/M115 Actuators
- Heights ranging from 10.25" to 15.65"
- Couples with existing Fisher valve stem
- All components are corrosion resistant
- Built-in anti-rotate assembly
- Mount and bearing rated for -100°F to 200°F
- Optimized lubrication of linear actuator in vertical installs
- Self-aligning assembly
Actuator to MasterFlo Valve Mounts
Key Features
- Options for P1E, P2E and P25E Chock Valves
- Custom configured for RDG090 and RDG115 Actuators
- Compact Height of 6"
- All components are corrosion resistant
- Mount and coupling rated for -25°F to 245°F
- Self-aligning assembly
